| Quantity | Per piece |
|---|---|
| 1+ | € 17,0300 |
| 100+ | € 14,8085 |
| 250+ | € 13,5860 |
| 500+ | € 12,2100 |

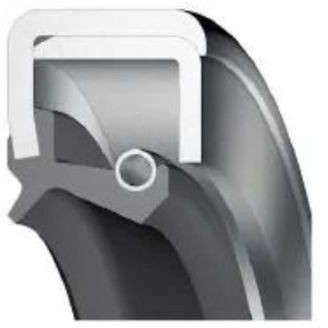

This O-Ring has a diameter of 133.35 mm and is Steel in color. The hardness of this Oil Seal 101,6x133,35x12,7 - TA - NBR - Nitrile - Black - OSS46424 is 101.6. Alternative names for the compound are , and it is commonly produced by Yes. The O-Ring is typically used in TA and has an operating temperature range from TA to . O-Rings 226698 are referred to as 46424 and have a DIN 3771 size of 133.35. This item is equivalent to 101,6x133,35x12,7 and has an Steel approval. The chemical name of this O-Ring is Yes.
| Article number | 46424 |
| Color 2 | Black |
| Country of Origin | TW |
| Minimum Order Qty | 2 |
| Type | Oil Seal |
| Model | TA |
| Brand Types | |
| Chicago R | CRWHA1 |
| Dichtomatik | WCS |
| Ebele | B2SL |
| Elring | CS |
| Eriks | GVST |
| FP Paris | L2P |
| Freudenberg | B2 SL |
| GOETZE | 824 S |
| KACO | DFSK |
| Kimman | KCS |
| Kramp | DC |
| National | 41 |
| NOK | TA |
| Sealsupply | OS-C11 |
| Stefa | DC |
| Taiwan | TA |
| Vota | CSL |
| Design | |
| Material | NBR - Nitrile |
| Material Spring | Steel |
| Color | Black |
| Dust lip | Yes |
| Housing Material | Steel |
| Spring | Yes |
| Type | TA |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Dimensions | 101,6 x 133,35 x 12,7 |
| DIN 3760 | 101,6x133,35x12,7 |
| Inside Diameter | 101.6 |
| Outer Diameter | 133.35 |
| Height | 12.7 |
