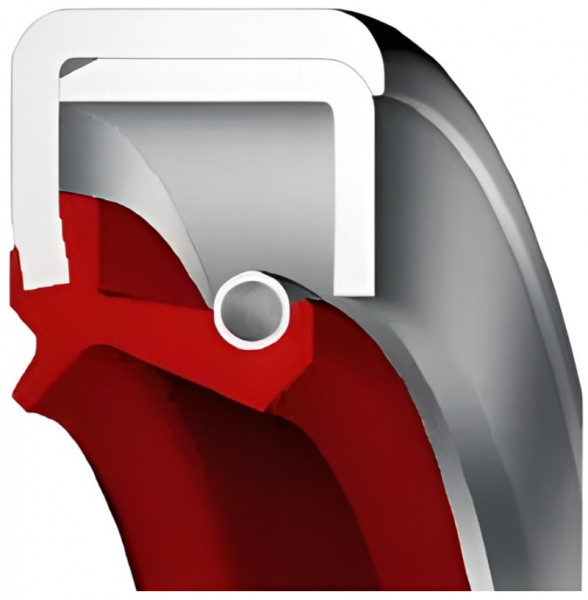

Oil Seal 105x140x15 - TA - VMQ - Silicone - Red - OSS49771

Oil Seal 105x140x15 - TA - VMQ - Silicone - Red - OSS49771
Rotation
Inside Diameter 105
Outer Diameter 140
Height 15
Material VMQ - SILICONE
Housing Material Steel
Material Spring Steel
Spring Yes
Dust lip Yes
Color Red
Item no. 49771
Stock 61 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 61 pcs
Article number 49771
Color 2Red
Country of OriginTW
Minimum Order Qty2
ModelTA
TypeOil Seal
Brand Types
Chicago RCRWHA1
DichtomatikWCS
EbeleB2SL
ElringCS
EriksGVST
FP ParisL2P
FreudenbergB2 SL
GOETZE824 S
KACODFSK
KimmanKCS
KrampDC
National41
NOKTA
SealsupplyOS-C11
StefaDC
TaiwanTA
VotaCSL
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipYes
ColorRed
TypeTA
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter105
Outer Diameter140
Height15
DIN 3760105x140x15
Dimensions105 x 140 x 15
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 105x140x15mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal TA. The Article number of this Oil Seal 105 x 140 x 15 is 49771. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 140mm and in the color Steel. The Hardness of this Oil Seal 105x140x15 - TA - VMQ - Silicone - Red - OSS49771 is 105.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TA and has an operating temperature range from TA to . O-rings 6582001 are indicated as 49771 and have a DIN 3771 Size of 140. This item is equal to 105x140x15 and has an Steel Approval. The chemical name of this Oring is Yes.
