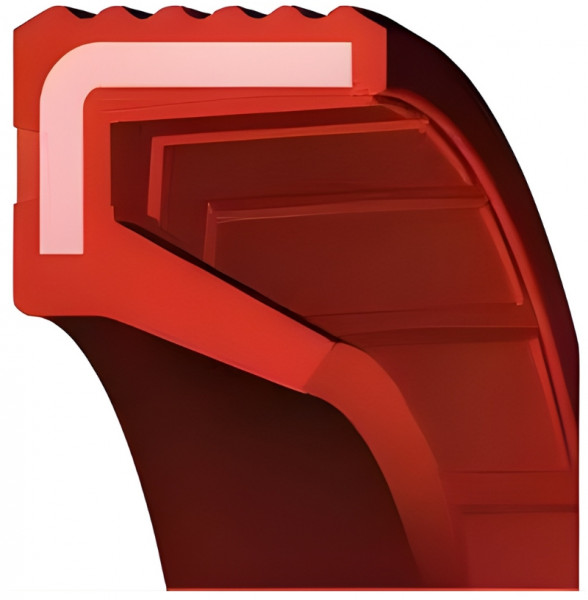

Oil Seal 16x24x3 - VC - VMQ - Silicone - Red - OSS78823

Oil Seal 16x24x3 - VC - VMQ - Silicone - Red - OSS78823
Rotation
Inside Diameter 16
Outer Diameter 24
Height 3
Material VMQ - SILICONE
Housing Material Steel
Spring No
Dust lip No
Color Red
Item no. 78823
Stock 29 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 29 pcs
Article number 78823
Color 2Red
Country of OriginTW
Minimum Order Qty10
ModelVC
TypeOil Seal
Brand Types
DichtomatikWAOK
EbeleRZV
EriksRGZV
FreudenbergBAOF
KACODE
KimmanKAOW
NOKVC
SealsupplyOS-G12
StefaCD
TaiwanVC
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
SpringNo
Dust lipNo
ColorRed
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter16
Outer Diameter24
Height3
DIN 376016x24x3
Dimensions16 x 24 x 3
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 16x24x3mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 16 x 24 x 3 is 78823. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 24mm and in the color Steel. The Hardness of this Oil Seal 16x24x3 - VC - VMQ - Silicone - Red - OSS78823 is 16.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582376 are indicated as 78823 and have a DIN 3771 Size of 24. This item is equal to 16x24x3 and has an Approval. The chemical name of this Oring is No.
