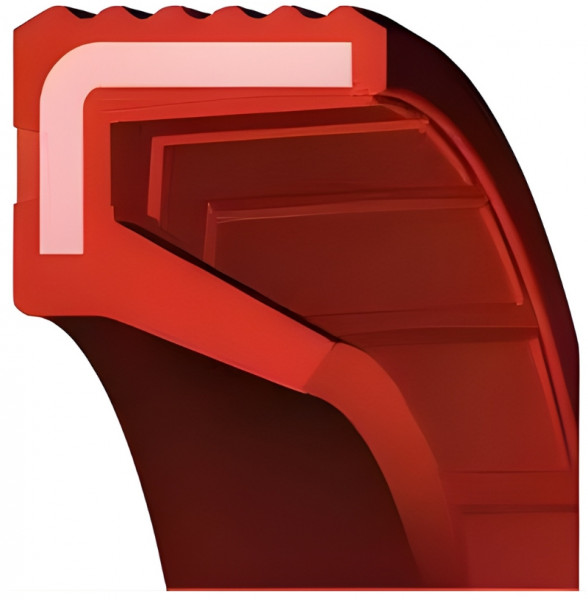

Oil Seal 16x25x3 - VC - VMQ - Silicone - Red - OSS78824

Item no. OSS78824
Inside Diameter (ID) 16
Outside Diameter (OD) 25
Height (H) 3
Model VC
Material VMQ - SILICONE
Color Red
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications

Receive a quote

Description
This Oil Seal has the following Dimensions: 16x25x3mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 16 x 25 x 3 is 78824. And this item has a minimum order Quantity of 10 Pieces

This O-Ring has a diameter of 25 mm and is Steel in color. The hardness of this Oil Seal 16x25x3 - VC - VMQ - Silicone - Red - OSS78824 is 16. Alternative names for the compound are , and it is commonly produced by No. The O-Ring is typically used in VC and has an operating temperature range from VC to . O-Rings 6582377 are referred to as 78824 and have a DIN 3771 size of 25. This item is equivalent to 16x25x3 and has an approval. The chemical name of this O-Ring is No.

Article number 78824
ModelVC
Color 2Red
Country of OriginTW
Minimum Order Qty10
TypeOil Seal
Brand Types
DichtomatikWAOK
EbeleRZV
EriksRGZV
FreudenbergBAOF
KACODE
KimmanKAOW
NOKVC
SealsupplyOS-G12
StefaCD
TaiwanVC
Design
MaterialVMQ - SILICONE
ColorRed
Dust lipNo
Housing MaterialSteel
SpringNo
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Dimensions16 x 25 x 3
DIN 376016x25x3
Inside Diameter16
Outer Diameter25
Height3
download Download/print specifications PDF
