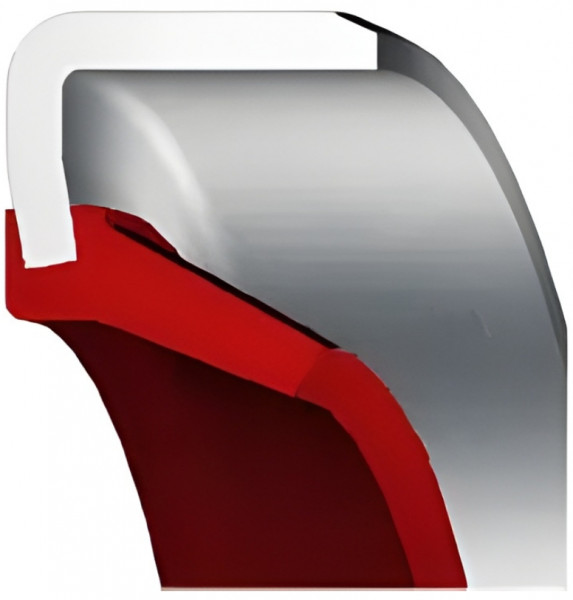

Oil Seal 17x25x3 - B12 - VMQ - Silicone - Red - OSS49817

Oil Seal 17x25x3 - B12 - VMQ - Silicone - Red - OSS49817
Rotation
Inside Diameter 17
Outer Diameter 25
Height 3
Material VMQ - SILICONE
Housing Material Steel
Spring No
Dust lip No
Color Red
Item no. 49817
Stock 15 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 15 pcs
Article number 49817
Color 2Red
Minimum Order Qty2
ModelOS-B12
TypeOil Seal
Brand Types
EriksMZV
SealsupplyOS-B12
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
SpringNo
Dust lipNo
ColorRed
TypeOS-B12
Material SpringSteel
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter17
Outer Diameter25
Height3
DIN 376017x25x3
Dimensions17 x 25 x 3
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 17x25x3mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal OS-B12. The Article number of this Oil Seal 17 x 25 x 3 is 49817. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 25mm and in the color Steel. The Hardness of this Oil Seal 17x25x3 - B12 - VMQ - Silicone - Red - OSS49817 is 17.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in and has an operating temperature range from OS-B12 to . O-rings 6582382 are indicated as 49817 and have a DIN 3771 Size of 25. This item is equal to 17x25x3 and has an Steel Approval. The chemical name of this Oring is No.
