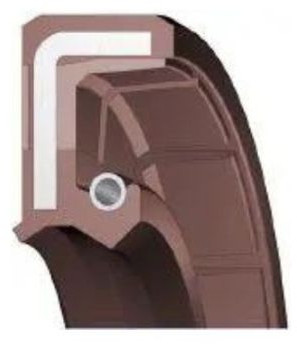

Oil Seal 20x32x6,5 - TCN - FKM - Viton® - Brown - OSS71568

Oil Seal 20x32x6,5 - TCN - FKM - Viton® - Brown - OSS71568
Rotation
Inside Diameter 20
Outer Diameter 32
Height 6.5
Material FPM - VITON
Spring Yes
Dust lip Yes
Color Brown
Item no. 71568
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 10,73 Ex. VAT
€ 10,73 In. VAT

This product has a minimum order Qty of 1pcs, € 10,73

All items marked with a * are required.

Quantity Per piece
1+ € 10,73
10+ € 9,90
25+ € 8,88
50+ € 8,43
100+ € 7,80
250+ € 6,78
500+ € 7,14
1000+ € 6,63
10000+ € 6,30
Specifications
Article number 71568
Color 2Brown
Minimum Order Qty2
ModelTCN
TypeOil Seal
Brand Types
DichtomatikWASY
EriksRST-D
FP ParisGAP
FreudenbergBABSL
GOETZE827 SK
KACODGSP
KimmanKAS-P
KrampBABSL
NOKTCN
SealsupplyOS-N21
StefaCF
TaiwanTCV
Design
MaterialFPM - VITON
SpringYes
Dust lipYes
ColorBrown
TypeTCN High Pressure
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter20
Outer Diameter32
Height6.5
DIN 376020x32x6,5
Dimensions20 x 32 x 6,5
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 20x32x6,5mm, and the color is Brown. The Material of this item is FPM - VITON The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 20 x 32 x 6,5 is 71568. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 32mm and in the color . The Hardness of this Oil Seal 20x32x6,5 - TCN - FKM - Viton® - Brown - OSS71568 is 20.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 140041 are indicated as 71568 and have a DIN 3771 Size of 32. This item is equal to 20x32x6,5 and has an Approval. The chemical name of this Oring is Yes.
