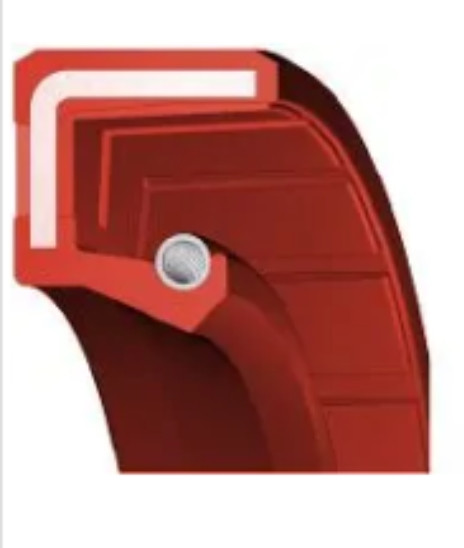

Oil Seal 20x34x7 - SC - VMQ - Silicone - Red - OSS41079

Item no. OSS41079
Inside Diameter (ID) 20
Outside Diameter (OD) 34
Height (H) 7
Model SC
Material VMQ - SILICONE
Material Spring Spring steel according to DIN EN 10270-7824
Color Red
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications

Receive a quote

Description
This Oil Seal has the following Dimensions: 20x34x7mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 20 x 34 x 7 is 41079. And this item has a minimum order Quantity of 10 Pieces

This O-Ring has a diameter of 34 mm and is Carbon steel according to DIN EN 17962 in color. The hardness of this Oil Seal 20x34x7 - SC - VMQ - Silicone - Red - OSS41079 is 20. Alternative names for the compound are , and it is commonly produced by No. The O-Ring is typically used in SC and has an operating temperature range from SC to . O-Rings 6579939 are referred to as 41079 and have a DIN 3771 size of 34. This item is equivalent to 20x34x7 and has an Spring steel according to DIN EN 10270-7824 approval. The chemical name of this O-Ring is Yes.

Article number 41079
ModelSC
Color 2Red
Country of OriginTW
Material optionsNBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM)
Minimum Order Qty10
TypeOil Seal
Brand Types
B+STR-A
Chicago RHMS4
DichtomatikWA
EbeleR
ElringA
EriksR
FP ParisG
FreudenbergBA
GacoA
GOETZE827 N
KACODG
KimmanKA
KrampCB
National35
NOKSC
PaulstraIE
Pioneer WR 21
RolfR
SealsupplyOS-A10
StefaCB
TaiwanSC
VotaA
Design
MaterialVMQ - SILICONE
Material SpringSpring steel according to DIN EN 10270-7824
ColorRed
Dust lipNo
Housing MaterialCarbon steel according to DIN EN 17962
RotationL-DRAL
SpringYes
TypeSC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Dimensions20 x 34 x 7
DIN 376020x34x7
Inside Diameter20
Outer Diameter34
Height7
