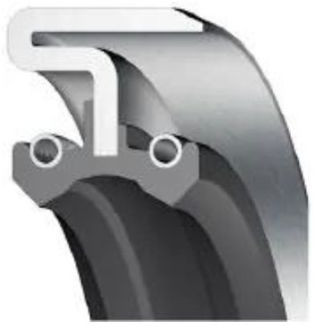

Oil Seal 20x40x14 - DB - NBR - Nitrile - Black - OSS47376

Oil Seal 20x40x14 - DB - NBR - Nitrile - Black - OSS47376
Rotation
Inside Diameter 20
Outer Diameter 40
Height 14
Material NBR - Nitrile
Housing Material Steel
Spring Yes
Material Spring Steel
Dust lip No
Item no. 47376
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 3,64 Ex. VAT
€ 3,64 In. VAT

This product has a minimum order Qty of 4pcs, € 14,56

All items marked with a * are required.

Quantity Per piece
4+ € 3,64
100+ € 3,34
250+ € 3,06
500+ € 2,81
Specifications
Article number 47376
Color 2Black
Minimum Order Qty10
ModelDB
TypeOil Seal
Brand Types
DichtomatikWBD
ElringBD
EriksM-DUO
FreudenbergB1 DUO
GOETZE822 D
KACODFD
NOKDB
SealsupplyOS-D15
StefaBK
TaiwanDB
Design
MaterialNBR - Nitrile
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipNo
TypeDB
ColorBlack
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter20
Outer Diameter40
Height14
DIN 376020x40x14
Dimensions20 x 40 x 14
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 20x40x14mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal DB. The Article number of this Oil Seal 20 x 40 x 14 is 47376. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 40mm and in the color Steel. The Hardness of this Oil Seal 20x40x14 - DB - NBR - Nitrile - Black - OSS47376 is 20.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in DB and has an operating temperature range from DB to . O-rings 6527591 are indicated as 47376 and have a DIN 3771 Size of 40. This item is equal to 20x40x14 and has an Steel Approval. The chemical name of this Oring is Yes.
