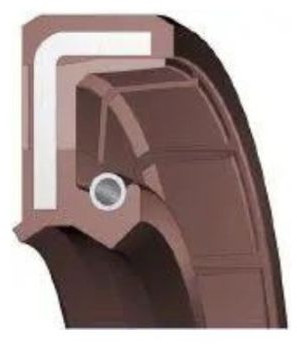

Oil Seal 22x32x7 - TCN - FKM - Viton® - Brown - OSS71684

Oil Seal 22x32x7 - TCN - FKM - Viton® - Brown - OSS71684
Rotation
Inside Diameter 22
Outer Diameter 32
Height 7
Material FPM - VITON
Spring Yes
Dust lip Yes
Color Brown
Item no. 71684
Stock 701 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Stock Delivery time
35 On workingdays before 13:00 ordered, shipped the same day
666 Shipped in 5 - 7 - Day(s)
€ 10,73 Ex. VAT
€ 10,73 In. VAT

On workingdays before 13:00 ordered, shipped the same day
This product has a minimum order Qty of 1pcs, € 10,73
Quantity Per piece
1+ € 10,73
10+ € 9,90
25+ € 8,88
50+ € 8,43
100+ € 7,80
250+ € 6,78
500+ € 7,14
1000+ € 6,63
10000+ € 6,30
Specifications
In stock Yes, 701 pcs
Article number 71684
Color 2Brown
Minimum Order Qty2
ModelTCN
TypeOil Seal
Brand Types
DichtomatikWASY
EriksRST-D
FP ParisGAP
FreudenbergBABSL
GOETZE827 SK
KACODGSP
KimmanKAS-P
KrampBABSL
NOKTCN
SealsupplyOS-N21
StefaCF
TaiwanTCV
Design
MaterialFPM - VITON
SpringYes
Dust lipYes
ColorBrown
TypeTCN High Pressure
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter22
Outer Diameter32
Height7
DIN 376022x32x7
Dimensions22 x 32 x 7
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 22x32x7mm, and the color is Brown. The Material of this item is FPM - VITON The Material of the house is . The model is Oil Seal TCN. The Article number of this Oil Seal 22 x 32 x 7 is 71684. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 32mm and in the color . The Hardness of this Oil Seal 22x32x7 - TCN - FKM - Viton® - Brown - OSS71684 is 22.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TCV and has an operating temperature range from TCN High Pressure to . O-rings 199573 are indicated as 71684 and have a DIN 3771 Size of 32. This item is equal to 22x32x7 and has an Approval. The chemical name of this Oring is Yes.
