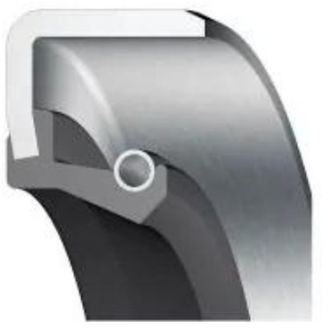

Oil Seal 24x38x10 SB NBR - Nitrile Black OSS52688

Oil Seal 24x38x10 SB NBR - Nitrile Black OSS52688
Rotation
Inside Diameter 24
Outer Diameter 38
Height 10
Material NBR - Nitrile
Housing Material Steel
Material Spring Steel
Spring Yes
Color Black
Item no. 52688
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 1,40 Ex. VAT
€ 1,70 In. VAT

This product has a minimum order Qty of 9pcs, € 12,64
Quantity Per piece
9+ € 1,40
1000+ € 1,30
2500+ € 1,13
5000+ € 0,99
Article number 52688
Color 2Black
Minimum Order Qty2
ModelSB
TypeOil Seal
Brand Types
B+STR-C
Chicago RCRW1
DichtomatikWB
EbeleB1
ElringB
EriksM
FP ParisL1
FreudenbergB1
GacoABI
GOETZE822 N
KACODF
KimmanKB
KrampBB
National48
NOKSB
PaulstraEE
Pioneer WR4
RolfRM
SealsupplyOS-B10
StefaBB
TaiwanSB
VotaB
Design
MaterialNBR - Nitrile
Housing MaterialSteel
Material SpringSteel
SpringYes
ColorBlack
TypeSB
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3.2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter24
Outer Diameter38
Height10
Dimensions24 x 38 x 10
DIN 376024x38x10
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 24x38x10mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal SB. The Article number of this Oil Seal 24 x 38 x 10 is 52688. And this item has a minimum order Quantity of 2 Pieces This O-Ring is 38mm and in the color Steel. The Hardness of this Oil Seal 24x38x10 SB NBR - Nitrile Black OSS52688 is 24.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in SB and has an operating temperature range from SB to . O-rings 48788 are indicated as 52688 and have a DIN 3771 Size of 38. This item is equal to 24x38x10 and has an Steel Approval. The chemical name of this Oring is Yes.
