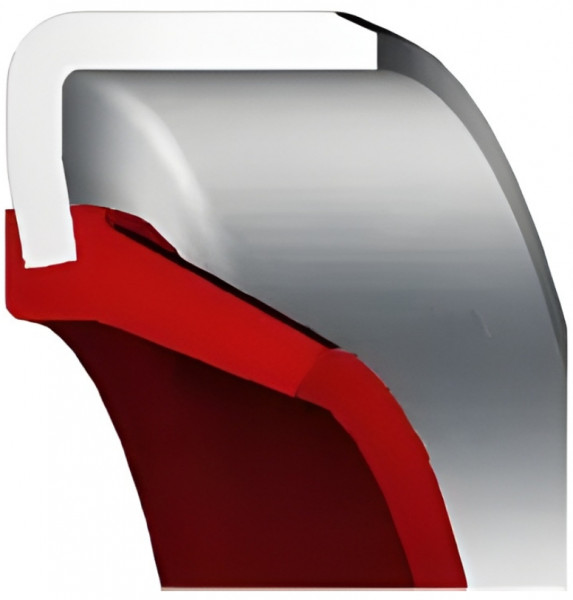

Oil Seal 25x33x4 - B12 - VMQ - Silicone - Red - OSS49818

Oil Seal 25x33x4 - B12 - VMQ - Silicone - Red - OSS49818
Rotation
Inside Diameter 25
Outer Diameter 33
Height 4
Material VMQ - SILICONE
Housing Material Steel
Spring No
Dust lip No
Color Red
Item no. 49818
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 49818
Color 2Red
Minimum Order Qty2
ModelOS-B12
TypeOil Seal
Brand Types
EriksMZV
SealsupplyOS-B12
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
SpringNo
Dust lipNo
ColorRed
TypeOS-B12
Material SpringSteel
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter25
Outer Diameter33
Height4
DIN 376025x33x4
Dimensions25 x 33 x 4
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 25x33x4mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal OS-B12. The Article number of this Oil Seal 25 x 33 x 4 is 49818. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 33mm and in the color Steel. The Hardness of this Oil Seal 25x33x4 - B12 - VMQ - Silicone - Red - OSS49818 is 25.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in and has an operating temperature range from OS-B12 to . O-rings 6582414 are indicated as 49818 and have a DIN 3771 Size of 33. This item is equal to 25x33x4 and has an Steel Approval. The chemical name of this Oring is No.
