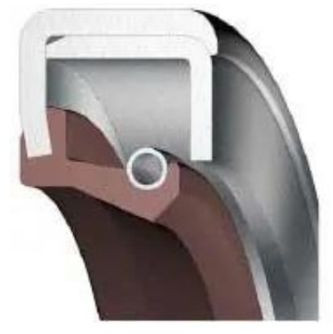

This O-Ring has a diameter of 290 mm and is Steel in color. The hardness of this Oil Seal 265x290x16 - SA - FKM - Viton® - Brown - OSS47522 is 265. Alternative names for the compound are , and it is commonly produced by No. The O-Ring is typically used in SA and has an operating temperature range from SA to . O-Rings 6528162 are referred to as 47522 and have a DIN 3771 size of 290. This item is equivalent to 265x290x16 and has an Steel approval. The chemical name of this O-Ring is Yes.
| Article number | 47522 |
| Model | SA |
| Color 2 | Brown |
| Country of Origin | TW |
| Minimum Order Qty | 2 |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-B |
| Chicago R | CRWH1 |
| Dichtomatik | WC |
| Ebele | B2 |
| Elring | C |
| Eriks | GV |
| FP Paris | L2 |
| Freudenberg | B2 |
| GOETZE | 824 N |
| KACO | DKF |
| Kimman | KC |
| Kramp | DB |
| National | 45 |
| NOK | SA |
| Paulstra | EEP |
| Pioneer W | R1 |
| Rolf | RC |
| Sealsupply | OS-C10 |
| Stefa | DB |
| Taiwan | SA |
| Vota | C |
| Design | |
| Material | FPM - VITON |
| Material Spring | Steel |
| Color | Brown |
| Dust lip | No |
| Housing Material | Steel |
| Spring | Yes |
| Type | SA |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H1727 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Dimensions | 265 x 290 x 16 |
| DIN 3760 | 265x290x16 |
| Inside Diameter | 265 |
| Outer Diameter | 290 |
| Height | 16 |
