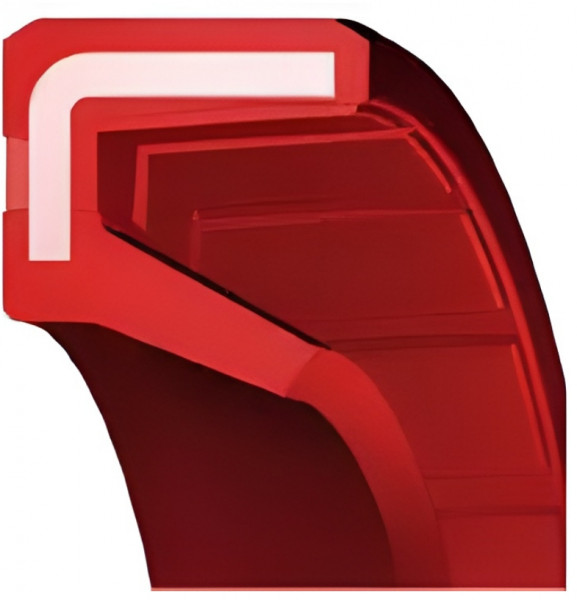

Oil Seal 28x35x4 VC VMQ - SILICONE Red OSS59797

Oil Seal 28x35x4 VC VMQ - SILICONE Red OSS59797
Rotation
Inside Diameter 28
Outer Diameter 35
Height 4
Material VMQ - SILICONE
Housing Material Steel
Color Red
Item no. 59797
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Article number 59797
Color 2Red
Minimum Order Qty10
ModelVC
TypeOil Seal
Brand Types
DichtomatikWAO
ElringADF
EriksRZV
FP ParisGSM
FreudenbergBA OF
GacoSA
GOETZE827 NO
KACODE
KimmanKAOW
KrampCD
NOKVC
PaulstraIO
Pioneer WR26
RolfLSM
SealsupplyOS-A12
StefaCD
TaiwanVC
VotaAOF
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
ColorRed
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter28
Outer Diameter35
Height4
DIN 376028x35x4
Dimensions28 x 35 x 4
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 28x35x4mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 28 x 35 x 4 is 59797. And this item has a minimum order Quantity of 10 Pieces
