| Stock | Delivery time |
|---|---|
| 538 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
| Quantity | Per piece |
|---|---|
| 17+ | € 2,89 |
| 100+ | € 2,65 |
| 250+ | € 2,41 |
| 500+ | € 2,10 |
| In stock | Yes, 538 pcs |
| Article number | 75254 |
| Color 2 | Black |
| Minimum Order Qty | 10 |
| Model | VC |
| Seal | Oil Seal |
| Brand Types | |
| Dichtomatik | WAOK |
| Ebele | RZV |
| Eriks | RGZV |
| Freudenberg | BAOF |
| KACO | DE |
| Kimman | KAOW |
| NOK | VC |
| Sealsupply | OS-G12 |
| Stefa | CD |
| Taiwan | VC |
| Design | |
| Material | NBR - Nitrile |
| Housing Material | Steel |
| Spring | No |
| Dust lip | No |
| Color | Black |
| Type | VC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 29 |
| Outer Diameter | 37 |
| Height | 4 |
| DIN 3760 | 29x37x4 |
| Dimensions | 29 x 37 x 4 |

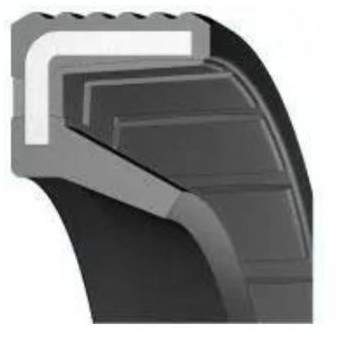

This Oil Seal has the following Dimensions: 29x37x4mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 29 x 37 x 4 is 75254. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 37mm and in the color Steel. The Hardness of this Oil Seal 29x37x4 VC NBR - Nitrile Black OSS75254 is 29.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6528396 are indicated as 75254 and have a DIN 3771 Size of 37. This item is equal to 29x37x4 and has an Approval. The chemical name of this Oring is No.
