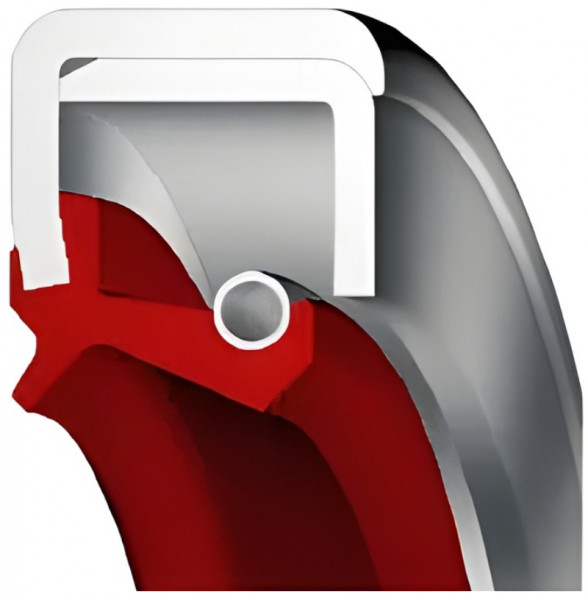

Oil Seal 30x47x9 - TA - VMQ - Silicone - Red - OSS49700

Oil Seal 30x47x9 - TA - VMQ - Silicone - Red - OSS49700
Rotation
Inside Diameter 30
Outer Diameter 47
Height 9
Material VMQ - SILICONE
Housing Material Steel
Material Spring Steel
Spring Yes
Dust lip Yes
Color Red
Item no. 49700
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 49700
Color 2Red
Country of OriginTW
Minimum Order Qty2
ModelTA
TypeOil Seal
Brand Types
Chicago RCRWHA1
DichtomatikWCS
EbeleB2SL
ElringCS
EriksGVST
FP ParisL2P
FreudenbergB2 SL
GOETZE824 S
KACODFSK
KimmanKCS
KrampDC
National41
NOKTA
SealsupplyOS-C11
StefaDC
TaiwanTA
VotaCSL
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipYes
ColorRed
TypeTA
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter30
Outer Diameter47
Height9
DIN 376030x47x9
Dimensions30 x 47 x 9
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 30x47x9mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal TA. The Article number of this Oil Seal 30 x 47 x 9 is 49700. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 47mm and in the color Steel. The Hardness of this Oil Seal 30x47x9 - TA - VMQ - Silicone - Red - OSS49700 is 30.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TA and has an operating temperature range from TA to . O-rings 6580709 are indicated as 49700 and have a DIN 3771 Size of 47. This item is equal to 30x47x9 and has an Steel Approval. The chemical name of this Oring is Yes.
