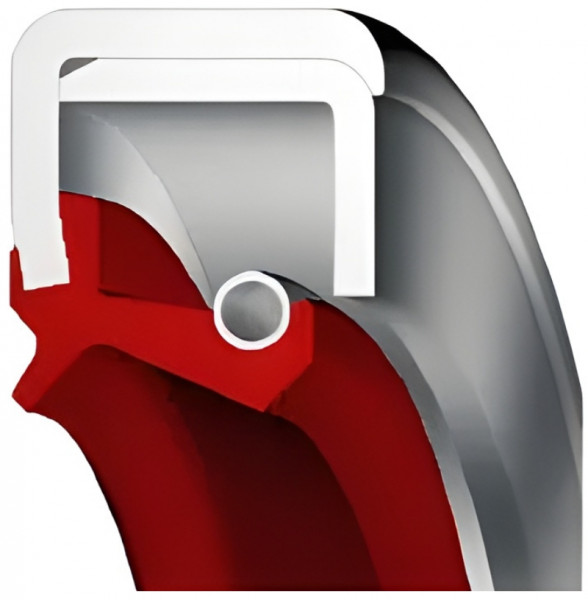

Oil Seal 31,75x57,15x9,52 - TA - VMQ - Silicone - Red - OSS49706

Oil Seal 31,75x57,15x9,52 - TA - VMQ - Silicone - Red - OSS49706
Rotation
Inside Diameter 31.75
Outer Diameter 57.15
Height 9.52
Material VMQ - SILICONE
Housing Material Steel
Material Spring Steel
Spring Yes
Dust lip Yes
Color Red
Item no. 49706
Stock 274 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 274 pcs
Article number 49706
Color 2Red
Country of OriginTW
Minimum Order Qty2
ModelTA
TypeOil Seal
Brand Types
Chicago RCRWHA1
DichtomatikWCS
EbeleB2SL
ElringCS
EriksGVST
FP ParisL2P
FreudenbergB2 SL
GOETZE824 S
KACODFSK
KimmanKCS
KrampDC
National41
NOKTA
SealsupplyOS-C11
StefaDC
TaiwanTA
VotaCSL
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipYes
ColorRed
TypeTA
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter31.75
Outer Diameter57.15
Height9.52
DIN 376031,75x57,15x9,52
Dimensions31,75 x 57,15 x 9,52
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 31,75x57,15x9,52mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal TA. The Article number of this Oil Seal 31,75 x 57,15 x 9,52 is 49706. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 57.15mm and in the color Steel. The Hardness of this Oil Seal 31,75x57,15x9,52 - TA - VMQ - Silicone - Red - OSS49706 is 31.75.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TA and has an operating temperature range from TA to . O-rings 6580769 are indicated as 49706 and have a DIN 3771 Size of 57.15. This item is equal to 31,75x57,15x9,52 and has an Steel Approval. The chemical name of this Oring is Yes.
