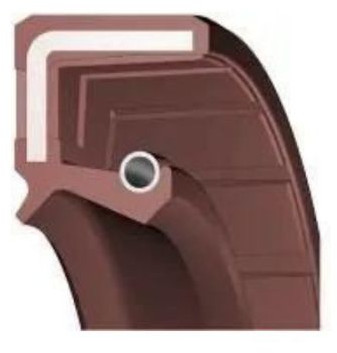

Oil Seal 34,92x57,15x9,52 - TC - FKM - Viton® - Brown - OSS69504

Oil Seal 34,92x57,15x9,52 - TC - FKM - Viton® - Brown - OSS69504
Rotation
Inside Diameter 34.92
Outer Diameter 57.15
Height 9.52
Material FPM - VITON
Housing Material Steel
Material Spring Steel
Spring Yes
Dust lip Yes
Color Brown
Item no. 69504
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 13,83 Ex. VAT
€ 13,83 In. VAT

This product has a minimum order Qty of 1pcs, € 13,83

All items marked with a * are required.

Quantity Per piece
1+ € 13,83
2+ € 12,80
3+ € 11,60
5+ € 10,90
10+ € 9,88
25+ € 9,28
50+ € 8,58
100+ € 7,73
Specifications
Article number 69504
Color 2Brown
Country of OriginTW
Minimum Order Qty10
ModelTC
TypeOil Seal
Brand Types
B+STR-E
Chicago RHMSA7
DichtomatikWAS
EbeleRP
ElringAS
EriksRST
FP ParisGP
FreudenbergBASL
GacoFA
GOETZE827 S
KACODGS
KimmanKAS
KrampCC
National32
NOKTC
PaulstraIEL
Pioneer WR23
RolfRP
SealsupplyOS-A11
StefaCC
TaiwanTC
VotaASL
Design
MaterialFPM - VITON
Housing MaterialSteel
Material SpringSteel
SpringYes
Dust lipYes
ColorBrown
TypeTC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter34.92
Outer Diameter57.15
Height9.52
Dimensions34,92 x 57,15 x 9,52
DIN 376034,92x57,15x9,52
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 34,92x57,15x9,52mm, and the color is Brown. The Material of this item is FPM - VITON The Material of the house is Steel. The model is Oil Seal TC. The Article number of this Oil Seal 34,92 x 57,15 x 9,52 is 69504. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 57.15mm and in the color Steel. The Hardness of this Oil Seal 34,92x57,15x9,52 - TC - FKM - Viton® - Brown - OSS69504 is 34.92.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 353231 are indicated as 69504 and have a DIN 3771 Size of 57.15. This item is equal to 34,92x57,15x9,52 and has an Steel Approval. The chemical name of this Oring is Yes.
