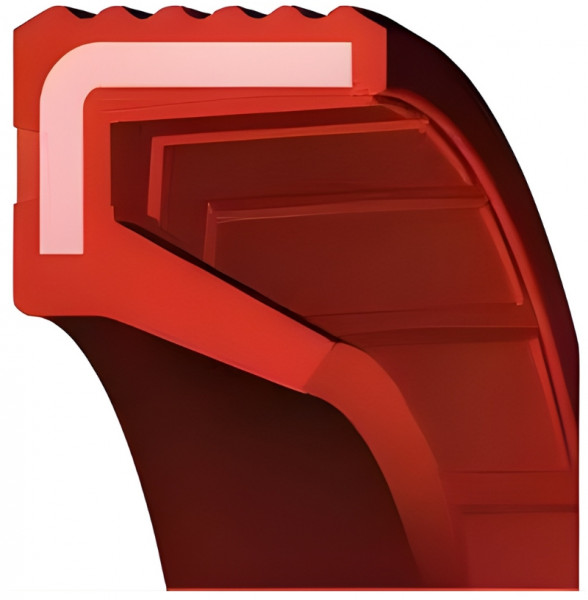

Oil Seal 35x41x4 VC VMQ - SILICONE Red OSS78868

Oil Seal 35x41x4 VC VMQ - SILICONE Red OSS78868
Rotation
Inside Diameter 35
Outer Diameter 41
Height 4
Material VMQ - SILICONE
Housing Material Steel
Spring No
Dust lip No
Color Red
Item no. 78868
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote
Specifications
Article number 78868
Color 2Red
Minimum Order Qty10
ModelVC
SealOil Seal
Brand Types
DichtomatikWAOK
EbeleRZV
EriksRGZV
FreudenbergBAOF
KACODE
KimmanKAOW
NOKVC
SealsupplyOS-G12
StefaCD
TaiwanVC
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
SpringNo
Dust lipNo
ColorRed
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter35
Outer Diameter41
Height4
DIN 376035x41x4
Dimensions35 x 41 x 4
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 35x41x4mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 35 x 41 x 4 is 78868. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 41mm and in the color Steel. The Hardness of this Oil Seal 35x41x4 VC VMQ - SILICONE Red OSS78868 is 35.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582437 are indicated as 78868 and have a DIN 3771 Size of 41. This item is equal to 35x41x4 and has an Approval. The chemical name of this Oring is No.

Get a quote now
