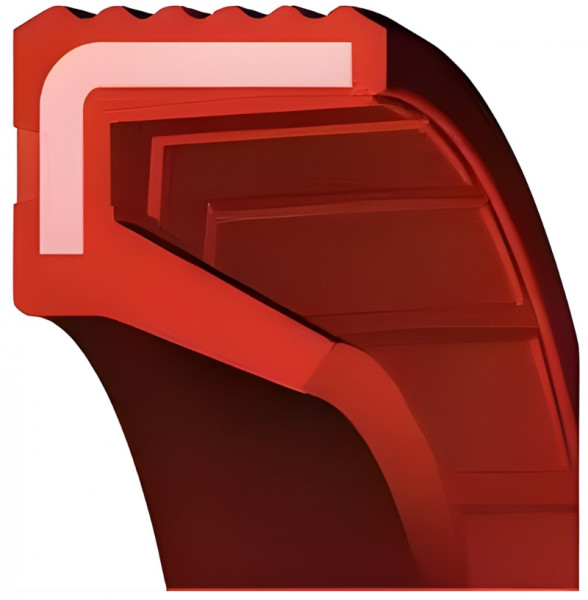

Oil Seal 50x62x5 VC VMQ - SILICONE Red OSS78887

Oil Seal 50x62x5 VC VMQ - SILICONE Red OSS78887
Rotation
Inside Diameter 50
Outer Diameter 62
Height 5
Material VMQ - SILICONE
Housing Material Steel
Spring No
Dust lip No
Color Red
Item no. 78887
Stock 21 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote
Specifications
In stock Yes, 21 pcs
Article number 78887
Color 2Red
Minimum Order Qty10
ModelVC
SealOil Seal
Brand Types
DichtomatikWAOK
EbeleRZV
EriksRGZV
FreudenbergBAOF
KACODE
KimmanKAOW
NOKVC
SealsupplyOS-G12
StefaCD
TaiwanVC
Design
MaterialVMQ - SILICONE
Housing MaterialSteel
SpringNo
Dust lipNo
ColorRed
TypeVC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter50
Outer Diameter62
Height5
DIN 376050x62x5
Dimensions50 x 62 x 5
download Download/print specifications PDF
Description

This Oil Seal has the following Dimensions: 50x62x5mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 50 x 62 x 5 is 78887. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 62mm and in the color Steel. The Hardness of this Oil Seal 50x62x5 VC VMQ - SILICONE Red OSS78887 is 50.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582461 are indicated as 78887 and have a DIN 3771 Size of 62. This item is equal to 50x62x5 and has an Approval. The chemical name of this Oring is No.
