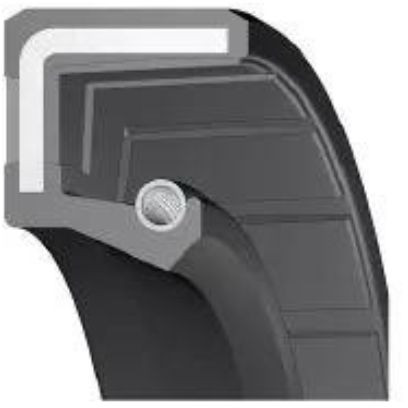

Oil Seal 560x610x20 - SC - ACM - Black - OSS39257

Oil Seal 560x610x20 - SC - ACM - Black - OSS39257
Rotation
Inside Diameter 560
Outer Diameter 610
Height 20
Material ACM
Housing Material Carbon steel according to DIN EN 17217
Material Spring Spring steel according to DIN EN 10270-7079
Spring Yes
Dust lip No
Color Black
Item no. 39257
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
Article number 39257
Color 2Black
Material optionsNBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM)
Minimum Order Qty10
ModelSC
TypeOil Seal
Brand Types
B+STR-A
Chicago RHMS4
DichtomatikWA
EbeleR
ElringA
EriksR
FP ParisG
FreudenbergBA
GacoA
GOETZE827 N
KACODG
KimmanKA
KrampCB
National35
NOKSC
PaulstraIE
Pioneer WR 21
RolfR
SealsupplyOS-A10
StefaCB
TaiwanSC
VotaA
Design
MaterialACM
Housing MaterialCarbon steel according to DIN EN 17217
Material SpringSpring steel according to DIN EN 10270-7079
SpringYes
Dust lipNo
ColorBlack
TypeSC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter560
Outer Diameter610
Height20
Dimensions560 x 610 x 20
DIN 3760560x610x20
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 560x610x20mm, and the color is Black. The Material of this item is ACM The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 560 x 610 x 20 is 39257. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 610mm and in the color Carbon steel according to DIN EN 17217. The Hardness of this Oil Seal 560x610x20 - SC - ACM - Black - OSS39257 is 560.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SC and has an operating temperature range from SC to . O-rings 479395 are indicated as 39257 and have a DIN 3771 Size of 610. This item is equal to 560x610x20 and has an Spring steel according to DIN EN 10270-7079 Approval. The chemical name of this Oring is Yes.
