| Quantity | Per piece |
|---|---|
| 1+ | € 28,4600 |
| 3+ | € 26,3400 |
| 5+ | € 23,8600 |
| 10+ | € 22,4200 |
| 25+ | € 20,3200 |
| 50+ | € 23,8250 |
| 100+ | € 21,7598 |

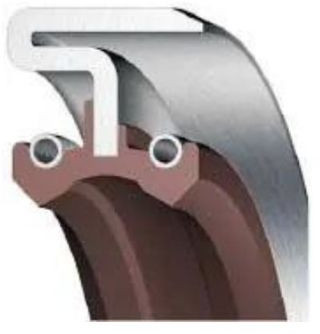

This O-Ring has a diameter of 85 mm and is Steel in color. The hardness of this Oil Seal 62x85x12 - DB - FKM - Viton® - Brown - OSS48107 is 62. Alternative names for the compound are , and it is commonly produced by No. The O-Ring is typically used in DB and has an operating temperature range from DB to . O-Rings 6530732 are referred to as 48107 and have a DIN 3771 size of 85. This item is equivalent to 62x85x12 and has an Steel approval. The chemical name of this O-Ring is Yes.
| Article number | 48107 |
| Model | DB |
| Color 2 | Brown |
| Country of Origin | TW |
| Minimum Order Qty | 10 |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WBD |
| Elring | BD |
| Eriks | M-DUO |
| Freudenberg | B1 DUO |
| GOETZE | 822 D |
| KACO | DFD |
| NOK | DB |
| Sealsupply | OS-D15 |
| Stefa | BK |
| Taiwan | DB |
| Design | |
| Material | FPM - VITON |
| Material Spring | Steel |
| Color | Brown |
| Dust lip | No |
| Housing Material | Steel |
| Spring | Yes |
| Type | DB |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Dimensions | 62 x 85 x 12 |
| DIN 3760 | 62x85x12 |
| Inside Diameter | 62 |
| Outer Diameter | 85 |
| Height | 12 |
All items marked with a * are required.
| Quantity | Per piece |
|---|---|
| 1+ | € 28,4600 |
| 3+ | € 26,3400 |
| 5+ | € 23,8600 |
| 10+ | € 22,4200 |
| 25+ | € 20,3200 |
| 50+ | € 23,8250 |
| 100+ | € 21,7598 |
