| Stock | Delivery time |
|---|---|
| 26.999 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
| Quantity | Per piece |
|---|---|
| 2+ | € 9,45 |
| 5+ | € 8,75 |
| 10+ | € 7,93 |
| 25+ | € 7,43 |
| 50+ | € 6,75 |
| 100+ | € 6,33 |
| In stock | Yes, 26999 pcs |
| Article number | 59859 |
| Color 2 | Brown |
| Minimum Order Qty | 10 |
| Model | VC |
| Type | Oil Seal |
| Brand Types | |
| Dichtomatik | WAO |
| Elring | ADF |
| Eriks | RZV |
| FP Paris | GSM |
| Freudenberg | BA OF |
| Gaco | SA |
| GOETZE | 827 NO |
| KACO | DE |
| Kimman | KAOW |
| Kramp | CD |
| NOK | VC |
| Paulstra | IO |
| Pioneer W | R26 |
| Rolf | LSM |
| Sealsupply | OS-A12 |
| Stefa | CD |
| Taiwan | VC |
| Vota | AOF |
| Design | |
| Material | FPM - VITON |
| Housing Material | Steel |
| Color | Brown |
| Type | VC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 6 |
| Outer Diameter | 10 |
| Height | 2 |
| DIN 3760 | 6x10x2 |
| Dimensions | 6 x 10 x 2 |

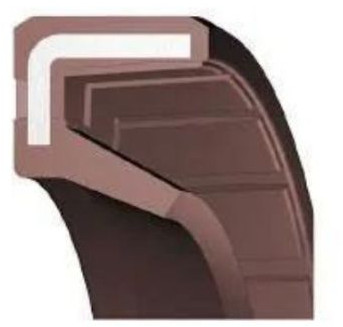

This Oil Seal has the following Dimensions: 6x10x2mm, and the color is Brown. The Material of this item is FPM - VITON The Material of the house is Steel. The model is Oil Seal VC. The Article number of this Oil Seal 6 x 10 x 2 is 59859. And this item has a minimum order Quantity of 10 Pieces
This O-Ring is 10mm and in the color Steel. The Hardness of this Oil Seal 6x10x2 - VC - FKM - Viton® - Brown - OSS59859 is 6.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in VC and has an operating temperature range from VC to . O-rings 6582845 are indicated as 59859 and have a DIN 3771 Size of 10. This item is equal to 6x10x2 and has an Approval. The chemical name of this Oring is .
