| Stock | Delivery time |
|---|---|
| 4.662 | Shipped in 35 - 42 - Day(s) |
Shipped in 35 - 42 - Day(s)
| Quantity | Per piece |
|---|---|
| 5+ | € 5,49 |
| 100+ | € 5,04 |
| 250+ | € 4,57 |
| 500+ | € 3,98 |
| In stock | Yes, 4662 pcs |
| Article number | 66042 |
| Color 2 | Blue |
| Minimum Order Qty | 10 |
| Model | TC |
| Seal | Oil Seal |
| Brand Types | |
| B+S | TR-E |
| Chicago R | HMSA7 |
| Dichtomatik | WAS |
| Ebele | RP |
| Elring | AS |
| Eriks | RST |
| FP Paris | GP |
| Freudenberg | BASL |
| Gaco | FA |
| GOETZE | 827 S |
| KACO | DGS |
| Kimman | KAS |
| Kramp | CC |
| National | 32 |
| NOK | TC |
| Paulstra | IEL |
| Pioneer W | R23 |
| Rolf | RP |
| Sealsupply | OS-A11 |
| Stefa | CC |
| Taiwan | TC |
| Vota | ASL |
| Design | |
| Material | NBR - Nitrile |
| Housing Material | Steel |
| Material Spring | Steel |
| Spring | Yes |
| Dust lip | Yes |
| Color | Blue |
| Type | TC |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 82 |
| Outer Diameter | 110 |
| Height | 13 |
| Dimensions | 82 x 110 x 13 |
| DIN 3760 | 82x110x13 |

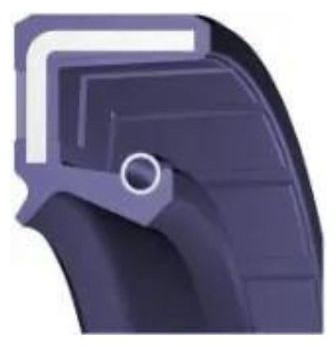

This Oil Seal has the following Dimensions: 82x110x13mm, and the color is Blue. The Material of this item is NBR – Nitrile The Material of the house is Steel. The model is Oil Seal TC. The Article number of this Oil Seal 82 x 110 x 13 is 66042. And this item has a minimum order Quantity of 10 Pieces This O-Ring is 110mm and in the color Steel. The Hardness of this Oil Seal 82x110x13 TC NBR - Nitrile Blue OSS66042 is 82.The alternative names of the compound are and they are mostly produced by Yes. The O-ring is commonly used in TC and has an operating temperature range from TC to . O-rings 220878 are indicated as 66042 and have a DIN 3771 Size of 110. This item is equal to 82x110x13 and has an Steel Approval. The chemical name of this Oring is Yes.
