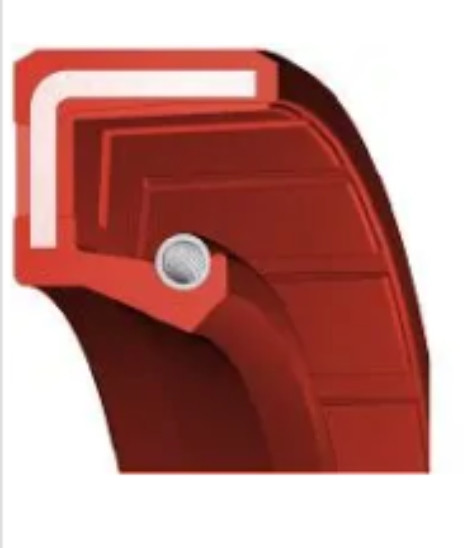

Oil Seal 127x150x12 - SC - VMQ - Silicone - Red - OSS41515

Oil Seal 127x150x12 - SC - VMQ - Silicone - Red - OSS41515
Rotation L-DRAL
Inside Diameter 127
Outer Diameter 150
Height 12
Material VMQ - SILICONE
Housing Material Carbon steel according to DIN EN 18398
Material Spring Spring steel according to DIN EN 10270-8260
Spring Yes
Dust lip No
Color Red
Item no. 41515
Stock 97 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 97 pcs
Article number 41515
Color 2Red
Material optionsNBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM)
Minimum Order Qty10
ModelSC
TypeOil Seal
Brand Types
B+STR-A
Chicago RHMS4
DichtomatikWA
EbeleR
ElringA
EriksR
FP ParisG
FreudenbergBA
GacoA
GOETZE827 N
KACODG
KimmanKA
KrampCB
National35
NOKSC
PaulstraIE
Pioneer WR 21
RolfR
SealsupplyOS-A10
StefaCB
TaiwanSC
VotaA
Design
RotationL-DRAL
MaterialVMQ - SILICONE
Housing MaterialCarbon steel according to DIN EN 18398
Material SpringSpring steel according to DIN EN 10270-8260
SpringYes
Dust lipNo
ColorRed
TypeSC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter127
Outer Diameter150
Height12
Dimensions127 x 150 x 12
DIN 3760127x150x12
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 127x150x12mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 127 x 150 x 12 is 41515. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 150mm and in the color Carbon steel according to DIN EN 18398. The Hardness of this Oil Seal 127x150x12 - SC - VMQ - Silicone - Red - OSS41515 is 127.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SC and has an operating temperature range from SC to . O-rings 6582099 are indicated as 41515 and have a DIN 3771 Size of 150. This item is equal to 127x150x12 and has an Spring steel according to DIN EN 10270-8260 Approval. The chemical name of this Oring is Yes.
