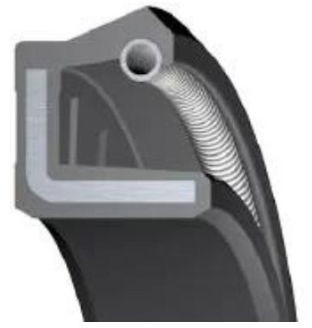

This O-Ring has a diameter of 120 mm and is in color. The hardness of this Oil Seal 140x120x13 - O18 - NBR - Nitrile - Black - OSS77152 is 140. Alternative names for the compound are , and it is commonly produced by No. The O-Ring is typically used in and has an operating temperature range from OS-O18 to . O-Rings 6566969 are referred to as 77152 and have a DIN 3771 size of 120. This item is equivalent to 140x120x13 and has an approval. The chemical name of this O-Ring is Yes.
| Article number | 77152 |
| Model | OS-O18 |
| Color 2 | Black |
| Country of Origin | TW |
| Minimum Order Qty | 10 |
| Type | Oil Seal |
| Brand Types | |
| Sealsupply | OS-O18 |
| Design | |
| Material | NBR - Nitrile |
| Color | Black |
| Dust lip | No |
| Spring | Yes |
| Type | OS-O18 |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Dimensions | 140 x 120 x 13 |
| DIN 3760 | 140x120x13 |
| Inside Diameter | 140 |
| Outer Diameter | 120 |
| Height | 13 |
