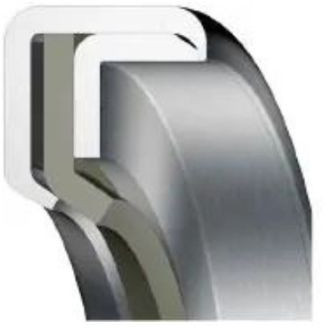

Oil Seal 150x180x12 - PA31 - PTFE - Black - OSS73944

Oil Seal 150x180x12 - PA31 - PTFE - Black - OSS73944
Rotation
Inside Diameter 150
Outer Diameter 180
Height 12
Material PTFE
Housing Material SS-316
Color Black
Item no. 73944
Stock 42 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Stock Delivery time
2 On workingdays before 12:00 ordered, shipped the same day
40 Shipped in 5 - 7 - Day(s)
€ 152,77 Ex. VAT
€ 152,77 In. VAT

On workingdays before 12:00 ordered, shipped the same day
This product has a minimum order Qty of 1pcs, € 152,77
Quantity Per piece
1+ € 152,77
2+ € 151,82
3+ € 138,03
5+ € 125,47
10+ € 119,20
15+ € 113,25
25+ € 107,58
50+ € 102,21
Specifications
In stock Yes, 42 pcs
Article number 73944
Color 2Black
Material optionsFKM
Minimum Order Qty2
ModelOS-PA31
TypeOil Seal
Brand Types
SealsupplyOS-PA31
Design
MaterialPTFE
Housing MaterialSS-316
ColorBlack
TypeOS-PA31
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 50 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter150
Outer Diameter180
Height12
DIN 3760150x180x12
Dimensions150 x 180 x 12
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 150x180x12mm, and the color is Black. The Material of this item is PTFE The Material of the house is SS-316. The model is Oil Seal OS-PA31. The Article number of this Oil Seal 150 x 180 x 12 is 73944. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 180mm and in the color SS-316. The Hardness of this Oil Seal 150x180x12 - PA31 - PTFE - Black - OSS73944 is 150.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in and has an operating temperature range from OS-PA31 to . O-rings 518746 are indicated as 73944 and have a DIN 3771 Size of 180. This item is equal to 150x180x12 and has an Approval. The chemical name of this Oring is .
