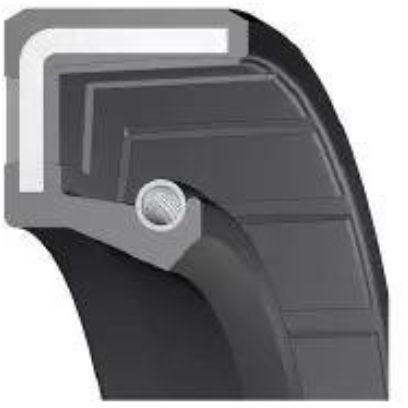

Oil Seal 16x24x5 SC ACM Black OSS41178

Oil Seal 16x24x5 SC ACM Black OSS41178
Rotation
Inside Diameter 16
Outer Diameter 24
Height 5
Material ACM
Housing Material Carbon steel according to DIN EN 18061
Material Spring Spring steel according to DIN EN 10270-7923
Spring Yes
Dust lip No
Color Black
Item no. 41178
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Article number 41178
Color 2Black
Material optionsNBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM)
Minimum Order Qty10
ModelSC
TypeOil Seal
Brand Types
B+STR-A
Chicago RHMS4
DichtomatikWA
EbeleR
ElringA
EriksR
FP ParisG
FreudenbergBA
GacoA
GOETZE827 N
KACODG
KimmanKA
KrampCB
National35
NOKSC
PaulstraIE
Pioneer WR 21
RolfR
SealsupplyOS-A10
StefaCB
TaiwanSC
VotaA
Design
MaterialACM
Housing MaterialCarbon steel according to DIN EN 18061
Material SpringSpring steel according to DIN EN 10270-7923
SpringYes
Dust lipNo
ColorBlack
TypeSC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter16
Outer Diameter24
Height5
Dimensions16 x 24 x 5
DIN 376016x24x5
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 16x24x5mm, and the color is Black. The Material of this item is ACM The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 16 x 24 x 5 is 41178. And this item has a minimum order Quantity of 10 Pieces
