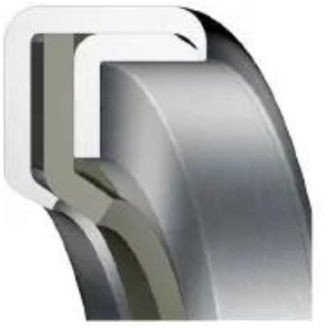

Oil Seal 25x35x7 - PA31 - PTFE - Black - OSS74070

Oil Seal 25x35x7 - PA31 - PTFE - Black - OSS74070
Rotation
Inside Diameter 25
Outer Diameter 35
Height 7
Material PTFE
Housing Material SS-316
Color Black
Item no. 74070
Stock 120 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Stock Delivery time
120 Shipped in 5 - 7 - Day(s)
€ 39,98 Ex. VAT
€ 39,98 In. VAT

Shipped in 5 - 7 - Day(s)
This product has a minimum order Qty of 1pcs, € 39,98
Quantity Per piece
1+ € 39,98
2+ € 34,76
3+ € 31,60
5+ € 28,74
10+ € 27,30
15+ € 25,92
25+ € 24,64
50+ € 23,40
Specifications
In stock Yes, 120 pcs
Article number 74070
Color 2Black
Material optionsFKM
Minimum Order Qty2
ModelOS-PA31
TypeOil Seal
Brand Types
SealsupplyOS-PA31
Design
MaterialPTFE
Housing MaterialSS-316
ColorBlack
TypeOS-PA31
Design information (Housing bore)
Housing RoughnessRa = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 50 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter25
Outer Diameter35
Height7
DIN 376025x35x7
Dimensions25 x 35 x 7
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 25x35x7mm, and the color is Black. The Material of this item is PTFE The Material of the house is SS-316. The model is Oil Seal OS-PA31. The Article number of this Oil Seal 25 x 35 x 7 is 74070. And this item has a minimum order Quantity of 2 Pieces

This O-Ring is 35mm and in the color SS-316. The Hardness of this Oil Seal 25x35x7 - PA31 - PTFE - Black - OSS74070 is 25.The alternative names of the compound are and they are mostly produced by . The O-ring is commonly used in and has an operating temperature range from OS-PA31 to . O-rings 687165 are indicated as 74070 and have a DIN 3771 Size of 35. This item is equal to 25x35x7 and has an Approval. The chemical name of this Oring is .
