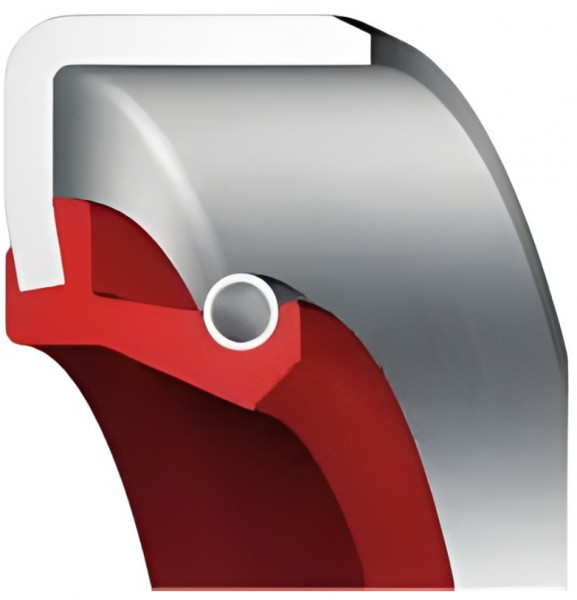

This O-Ring has a diameter of 55 mm and is Steel in color. The hardness of this Oil Seal 35x55x10 - SB - VMQ - Silicone - Red - OSS59704 is 35. Alternative names for the compound are , and it is commonly produced by . The O-Ring is typically used in SB and has an operating temperature range from SB to . O-Rings 6580896 are referred to as 59704 and have a DIN 3771 size of 55. This item is equivalent to 35x55x10 and has an Steel approval. The chemical name of this O-Ring is Yes.
| Article number | 59704 |
| Model | SB |
| Color 2 | Red |
| Country of Origin | TW |
| Minimum Order Qty | 2 |
| Type | Oil Seal |
| Brand Types | |
| B+S | TR-C |
| Chicago R | CRW1 |
| Dichtomatik | WB |
| Ebele | B1 |
| Elring | B |
| Eriks | M |
| FP Paris | L1 |
| Freudenberg | B1 |
| Gaco | ABI |
| GOETZE | 822 N |
| KACO | DF |
| Kimman | KB |
| Kramp | BB |
| National | 48 |
| NOK | SB |
| Paulstra | EE |
| Pioneer W | R4 |
| Rolf | RM |
| Sealsupply | OS-B10 |
| Stefa | BB |
| Taiwan | SB |
| Vota | B |
| Design | |
| Material | VMQ - SILICONE |
| Material Spring | Steel |
| Color | Red |
| Housing Material | Steel |
| Spring | Yes |
| Type | SB |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3.2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 35 |
| Outer Diameter | 55 |
| Height | 10 |
| Dimensions | 35 x 55 x 10 |
| DIN 3760 | 35x55x10 |
