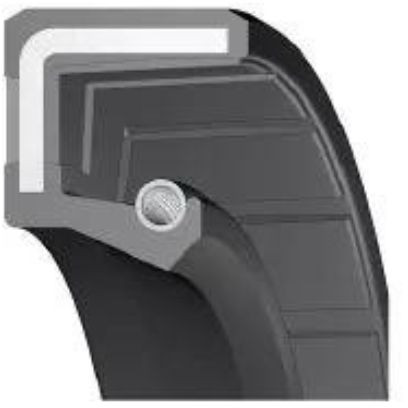

Oil Seal 42x62x7 - SC - EPDM - Black - OSS41340

Oil Seal 42x62x7 - SC - EPDM - Black - OSS41340
Rotation
Inside Diameter 42
Outer Diameter 62
Height 7
Material EPDM
Housing Material Carbon steel according to DIN EN 18223
Material Spring Spring steel according to DIN EN 10270-8085
Spring Yes
Dust lip No
Color Black
Item no. 41340
Stock 20 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 20 pcs
Article number 41340
Color 2Black
Material optionsNBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM)
Minimum Order Qty10
ModelSC
TypeOil Seal
Brand Types
B+STR-A
Chicago RHMS4
DichtomatikWA
EbeleR
ElringA
EriksR
FP ParisG
FreudenbergBA
GacoA
GOETZE827 N
KACODG
KimmanKA
KrampCB
National35
NOKSC
PaulstraIE
Pioneer WR 21
RolfR
SealsupplyOS-A10
StefaCB
TaiwanSC
VotaA
Design
MaterialEPDM
Housing MaterialCarbon steel according to DIN EN 18223
Material SpringSpring steel according to DIN EN 10270-8085
SpringYes
Dust lipNo
ColorBlack
TypeSC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter42
Outer Diameter62
Height7
Dimensions42 x 62 x 7
DIN 376042x62x7
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 42x62x7mm, and the color is Black. The Material of this item is EPDM The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 42 x 62 x 7 is 41340. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 62mm and in the color Carbon steel according to DIN EN 18223. The Hardness of this Oil Seal 42x62x7 - SC - EPDM - Black - OSS41340 is 42.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SC and has an operating temperature range from SC to . O-rings 6581111 are indicated as 41340 and have a DIN 3771 Size of 62. This item is equal to 42x62x7 and has an Spring steel according to DIN EN 10270-8085 Approval. The chemical name of this Oring is Yes.
