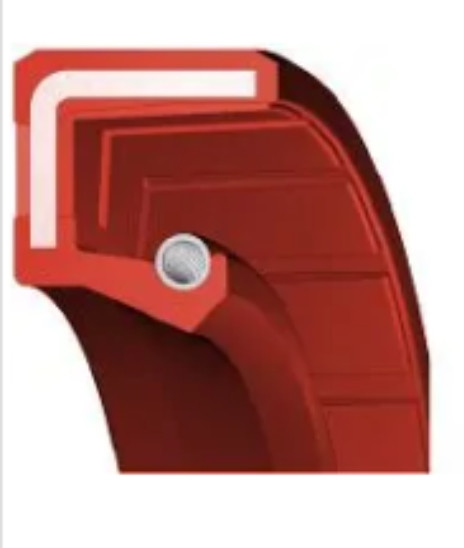

Oil Seal 48x72x8 - SC - VMQ - Silicone - Red - OSS41378

Oil Seal 48x72x8 - SC - VMQ - Silicone - Red - OSS41378
Rotation
Inside Diameter 48
Outer Diameter 72
Height 8
Material VMQ - SILICONE
Housing Material Carbon steel according to DIN EN 18261
Material Spring Spring steel according to DIN EN 10270-8123
Spring Yes
Dust lip No
Color Red
Item no. 41378
Stock 89 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 89 pcs
Article number 41378
Color 2Red
Material optionsNBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM)
Minimum Order Qty10
ModelSC
TypeOil Seal
Brand Types
B+STR-A
Chicago RHMS4
DichtomatikWA
EbeleR
ElringA
EriksR
FP ParisG
FreudenbergBA
GacoA
GOETZE827 N
KACODG
KimmanKA
KrampCB
National35
NOKSC
PaulstraIE
Pioneer WR 21
RolfR
SealsupplyOS-A10
StefaCB
TaiwanSC
VotaA
Design
MaterialVMQ - SILICONE
Housing MaterialCarbon steel according to DIN EN 18261
Material SpringSpring steel according to DIN EN 10270-8123
SpringYes
Dust lipNo
ColorRed
TypeSC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter48
Outer Diameter72
Height8
Dimensions48 x 72 x 8
DIN 376048x72x8
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 48x72x8mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 48 x 72 x 8 is 41378. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 72mm and in the color Carbon steel according to DIN EN 18261. The Hardness of this Oil Seal 48x72x8 - SC - VMQ - Silicone - Red - OSS41378 is 48.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SC and has an operating temperature range from SC to . O-rings 6581283 are indicated as 41378 and have a DIN 3771 Size of 72. This item is equal to 48x72x8 and has an Spring steel according to DIN EN 10270-8123 Approval. The chemical name of this Oring is Yes.
