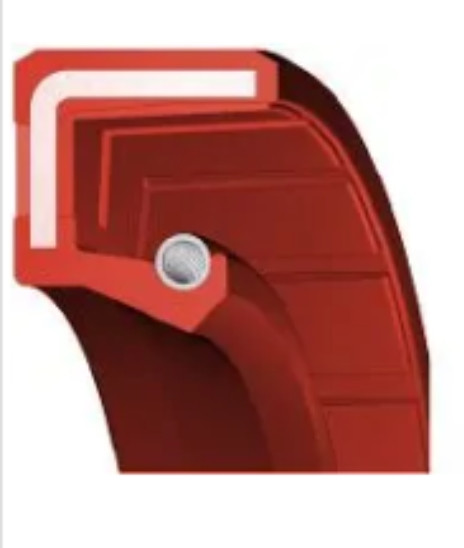

Oil Seal 65x85x10 - SC - VMQ - Silicone - Red - OSS41442

Oil Seal 65x85x10 - SC - VMQ - Silicone - Red - OSS41442
Rotation
Inside Diameter 65
Outer Diameter 85
Height 10
Material VMQ - SILICONE
Housing Material Carbon steel according to DIN EN 18325
Material Spring Spring steel according to DIN EN 10270-8187
Spring Yes
Dust lip No
Color Red
Item no. 41442
Stock 92 sentiment_satisfied_alt
keyboard_arrow_down All specifications
Request a quote

All items marked with a * are required.

Specifications
In stock Yes, 92 pcs
Article number 41442
Color 2Red
Material optionsNBR (or special materials: FKM, Silicone, ACM, HNBR, CR & EPDM)
Minimum Order Qty10
ModelSC
TypeOil Seal
Brand Types
B+STR-A
Chicago RHMS4
DichtomatikWA
EbeleR
ElringA
EriksR
FP ParisG
FreudenbergBA
GacoA
GOETZE827 N
KACODG
KimmanKA
KrampCB
National35
NOKSC
PaulstraIE
Pioneer WR 21
RolfR
SealsupplyOS-A10
StefaCB
TaiwanSC
VotaA
Design
MaterialVMQ - SILICONE
Housing MaterialCarbon steel according to DIN EN 18325
Material SpringSpring steel according to DIN EN 10270-8187
SpringYes
Dust lipNo
ColorRed
TypeSC
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter65
Outer Diameter85
Height10
Dimensions65 x 85 x 10
DIN 376065x85x10
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 65x85x10mm, and the color is Red. The Material of this item is VMQ – SILICONE The Material of the house is Steel. The model is Oil Seal SC. The Article number of this Oil Seal 65 x 85 x 10 is 41442. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 85mm and in the color Carbon steel according to DIN EN 18325. The Hardness of this Oil Seal 65x85x10 - SC - VMQ - Silicone - Red - OSS41442 is 65.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in SC and has an operating temperature range from SC to . O-rings 6581570 are indicated as 41442 and have a DIN 3771 Size of 85. This item is equal to 65x85x10 and has an Spring steel according to DIN EN 10270-8187 Approval. The chemical name of this Oring is Yes.
