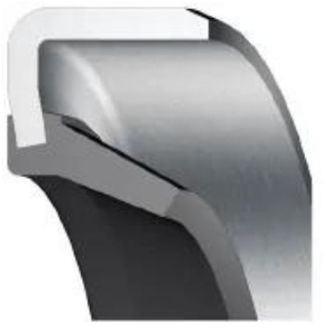

This O-Ring has a diameter of 106 mm and is Steel in color. The hardness of this Oil Seal 80x106x8 - B12 - NBR - Nitrile - Black - OSS43503 is 80. Alternative names for the compound are , and it is commonly produced by No. The O-Ring is typically used in and has an operating temperature range from OS-B12 to . O-Rings 50013 are referred to as 43503 and have a DIN 3771 size of 106. This item is equivalent to 80x106x8 and has an approval. The chemical name of this O-Ring is No.
| Article number | 43503 |
| Model | OS-B12 |
| Color 2 | Black |
| Country of Origin | TW |
| Minimum Order Qty | 2 |
| Type | Oil Seal |
| Brand Types | |
| Eriks | MZV |
| Sealsupply | OS-B12 |
| Design | |
| Material | NBR - Nitrile |
| Color | Black |
| Dust lip | No |
| Housing Material | Steel |
| Spring | No |
| Type | OS-B12 |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 0.8 - 3,2 μm Rz = 6.3 - 16 μm Rmax ≤ 16 μm |
| Housing Tolerance | ISO H8 |
| Design information (Shaft) | |
| Shaft Hardness | min. 45 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
| Shaft Tolerance | ISO h11 |
| Dimensions | |
| Inside Diameter | 80 |
| Outer Diameter | 106 |
| Height | 8 |
| Dimensions | 80 x 106 x 8 |
| DIN 3760 | 80x106x8 |
