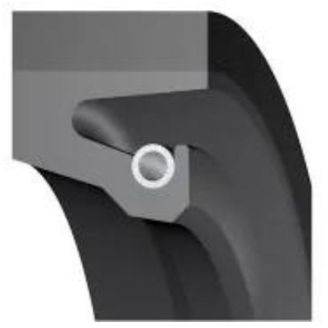

This O-Ring has a diameter of 865 mm and is in color. The hardness of this Oil Seal 815x865x25 - Q10 - NBR - Nitrile - Black - OSS77113 is 815. Alternative names for the compound are , and it is commonly produced by No. The O-Ring is typically used in and has an operating temperature range from OS-Q10 to . O-Rings 6559940 are referred to as 77113 and have a DIN 3771 size of 865. This item is equivalent to 815x865x25 and has an SS-304 approval. The chemical name of this O-Ring is Yes.
| Article number | 77113 |
| Model | OS-Q10 |
| Color 2 | Black |
| Country of Origin | TW |
| HS Code | 84879090 |
| Minimum Order Qty | 2 |
| Type | Oil Seal |
| Brand Types | |
| Freudenberg | R35 - RADI-1635 |
| Sealsupply | OS-Q10 |
| Design | |
| Material | NBR - Nitrile |
| Material Spring | SS-304 |
| Color | Black |
| Dust lip | No |
| Spring | Yes |
| Type | OS-Q10 |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 4 μm Rmax ≤ 15 μm |
| Housing Tolerance | D ≤ 500mm: ISO H8 D > 500mm: D+0.0004 x D |
| Design information (Shaft) | |
| Shaft Hardness | 60 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rmax ≤ 2,5 μm |
| Shaft Tolerance | ISO h9 |
| Dimensions | |
| Inside Diameter | 815 |
| Outer Diameter | 865 |
| Height | 25 |
| Dimensions | 815 x 865 x 25 |
| DIN 3760 | 815x865x25 |
