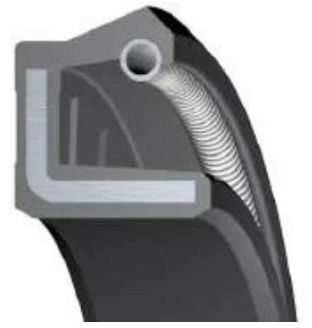

Oil Seal 90x70x10 - O18 - NBR - Nitrile - Black - OSS77133

Oil Seal 90x70x10 - O18 - NBR - Nitrile - Black - OSS77133
Rotation
Inside Diameter 90
Outer Diameter 70
Height 10
Material NBR - Nitrile
Spring Yes
Color Black
Item no. 77133
Stock 0 sentiment_satisfied_alt
keyboard_arrow_down All specifications
€ 9,60 Ex. VAT
€ 9,60 In. VAT

This product has a minimum order Qty of 2pcs, € 19,20

All items marked with a * are required.

Quantity Per piece
2+ € 9,60
100+ € 8,34
250+ € 7,65
500+ € 6,88
Specifications
Article number 77133
Color 2Black
Minimum Order Qty10
ModelOS-O18
TypeOil Seal
Brand Types
SealsupplyOS-O18
Design
MaterialNBR - Nitrile
SpringYes
ColorBlack
Dust lipNo
TypeOS-O18
Design information (Housing bore)
Housing RoughnessRa = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm
Housing ToleranceISO H8
Design information (Shaft)
Shaft Hardnessmin. 45 HRC
Shaft RoughnessRa = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm
Shaft ToleranceISO h11
Dimensions
Inside Diameter90
Outer Diameter70
Height10
DIN 376090x70x10
Dimensions90 x 70 x 10
download Download/print specifications PDF
Description
This Oil Seal has the following Dimensions: 90x70x10mm, and the color is Black. The Material of this item is NBR – Nitrile The Material of the house is . The model is Oil Seal OS-O18. The Article number of this Oil Seal 90 x 70 x 10 is 77133. And this item has a minimum order Quantity of 10 Pieces

This O-Ring is 70mm and in the color . The Hardness of this Oil Seal 90x70x10 - O18 - NBR - Nitrile - Black - OSS77133 is 90.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in and has an operating temperature range from OS-O18 to . O-rings 6566949 are indicated as 77133 and have a DIN 3771 Size of 70. This item is equal to 90x70x10 and has an Approval. The chemical name of this Oring is Yes.
