| Stock | Delivery time |
|---|---|
| 1 | On workingdays before 13:00 ordered, shipped the same day |
On workingdays before 13:00 ordered, shipped the same day
| Quantity | Per piece |
|---|---|
| 1+ | € 121,09 |
| 3+ | € 90,82 |
| 5+ | € 85,14 |
| 10+ | € 72,38 |
| In stock | Yes, 1 pcs |
| Article number | 71359 |
| Color 2 | Black |
| Country of Origin | TW |
| Minimum Order Qty | 2 |
| Model | OS-Q10 |

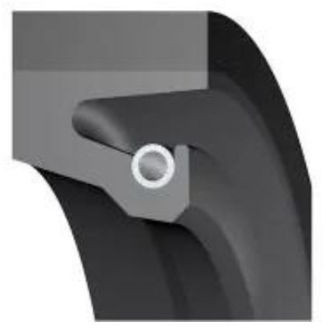

| Type | Oil Seal |
| Brand Types | |
| Freudenberg | R35 - RADI-1635 |
| Sealsupply | OS-Q10 |
| Design | |
| Material | NBR - Nitrile |
| Material Spring | SS-304 |
| Spring | Yes |
| Dust lip | No |
| Color | Black |
| Type | OS-Q10 |
| Design information (Housing bore) | |
| Housing Roughness | Ra = 1.6 - 4 μm Rmax ≤ 15 μm |
| Housing Tolerance | D ≤ 500mm: ISO H8 D > 500mm: D+0.0004 x D |
| Design information (Shaft) | |
| Shaft Hardness | 60 HRC |
| Shaft Roughness | Ra = 0.2 - 0.8 μm Rmax ≤ 2,5 μm |
| Shaft Tolerance | ISO h9 |
| Dimensions | |
| Inside Diameter | 165 |
| Outer Diameter | 190 |
| Height | 15 |
| DIN 3760 | 165x190x15 |
| Dimensions | 165 x 190 x 15 |
This O-Ring is 190mm and in the color . The Hardness of this Oil Seal 165x190x15 - Q10 - NBR - Nitrile - Black - OSS71359 is 165.The alternative names of the compound are and they are mostly produced by No. The O-ring is commonly used in and has an operating temperature range from OS-Q10 to . O-rings 115591 are indicated as 71359 and have a DIN 3771 Size of 190. This item is equal to 165x190x15 and has an SS-304 Approval. The chemical name of this Oring is Yes.
