In stock | Yes, 544 pcs |
Article number | 77135 |
Color 2 | Black |
Minimum Order Qty | 10 |
Model | OS-O18 |

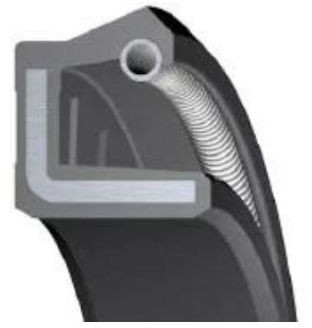

Type | Oil Seal |
Brand Types | |
Sealsupply | OS-O18 |
Design | |
Material | NBR - Nitrile |
Spring | Yes |
Color | Black |
Dust lip | No |
Type | OS-O18 |
Design information (Housing bore) | |
Housing Roughness | Ra = 1.6 - 6.3 μm Rz = 10 - 20 μm Rmax ≤ 25 μm |
Housing Tolerance | ISO H8 |
Design information (Shaft) | |
Shaft Hardness | min. 45 HRC |
Shaft Roughness | Ra = 0.2 - 0.8 μm Rz = 1 - 5 μm Rmax ≤ 6.3 μm |
Shaft Tolerance | ISO h11 |
Dimensions | |
Inside Diameter | 100 |
Outer Diameter | 70 |
Height | 14 |
DIN 3760 | 100x70x14 |
Dimensions | 100 x 70 x 14 |
